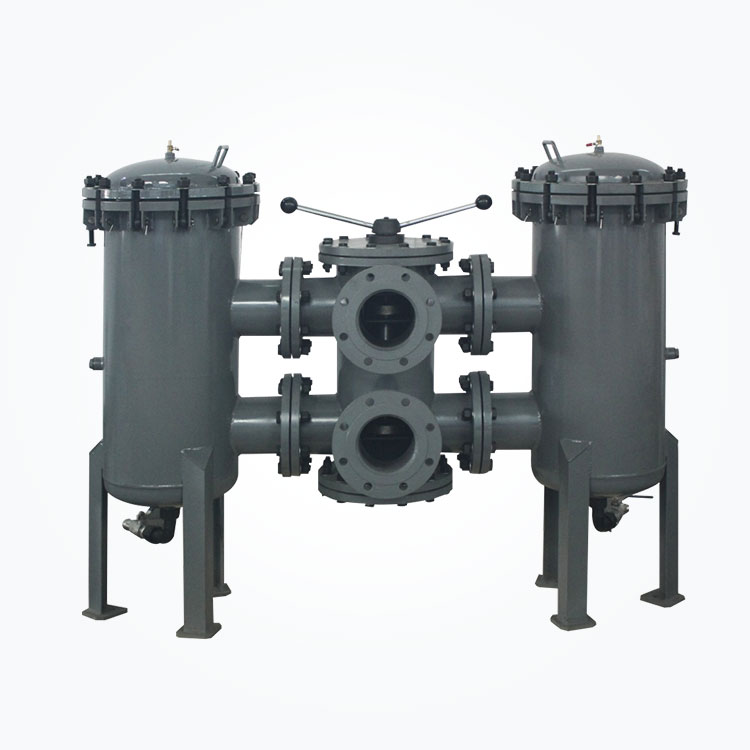

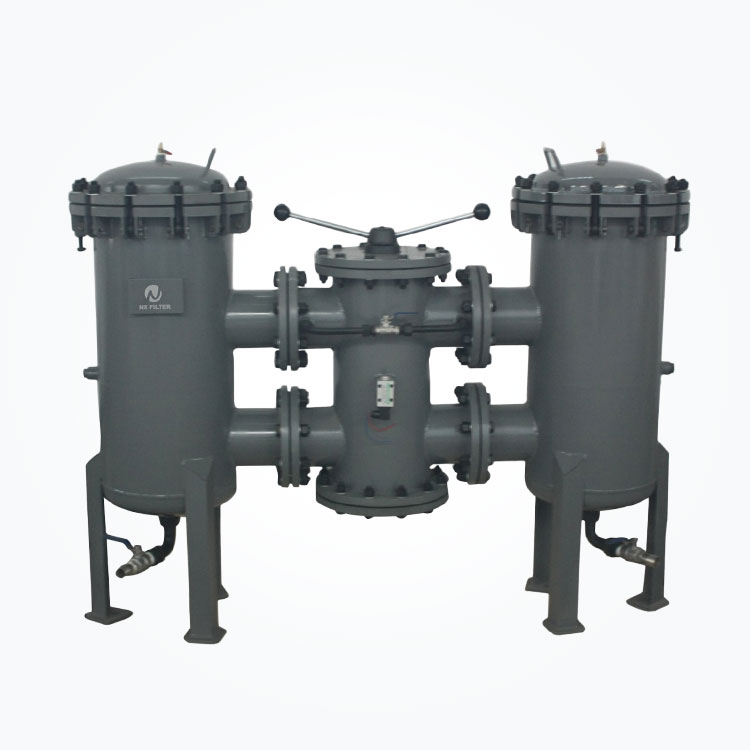

Tshwm, LYPD Series Cov Dej ntws tsawg qis qisvigh up siab pipeline lim
Nws raug ntsia rau hauv qhov siab qis dua cov raj xa dej lossis roj rov qab los ntawm cov khoom siv hydraulic los lim cov khoom ua haujlwm hauv nruab nrab thiab tswj cov kuab paug ntawm kev ua haujlwm nruab nrab.
Kev ua tau zoo thiab siv:
Nws raug ntsia rau hauv qhov siab qis dua cov raj xa dej lossis roj rov qab los ntawm cov khoom siv hydraulic los lim cov khoom ua haujlwm hauv nruab nrab thiab tswj cov kuab paug ntawm kev ua haujlwm nruab nrab.
LyPD cov ntxaij lim dej tuaj yeem hloov nrawm los ntawm kev ntws piston teb valve kom ua tiav kev ua haujlwm tsis sib haum xeeb.
Lub tshuab lim theem suav nrog fiber ntau, Kapok Tsim Nyuaj Siab Lim Cov Ntawv, Stainless hlau woven mesh thiab sintered muaj kev xav.
Lub lim vaj tse lub tsev nyob yog carbon hlau, lossis stainless hlau tuaj yeem siv raws li yuav tsum tau ua.
Kev Ntsuas Cov Qauv:
Ua Haujlwm Nruab Nrab | Ntxhia Roj, Emulsion, Tshuaj Glycol, Phosphate Cov Kua Lim Hydraulic (Kapok Qhov Tsim Nyuab Lim Lim Cov Ntawv Lim Taus yog tsim nyog rau cov roj ntxhia) |
Ua haujlwm siab (siab kawg) | 1.6MPA |
Lub tshuab hloov siab sib txawv: | 0.3mpa |
Bypass valve qhib kev siab siab | 0.35mpa |
Qauv Xaiv
Tus qauv loj parameter rooj
Tus qauv | Ntws l / min | Lub voos voos lub cheeb | B1 | D1 | D2 | D3 | D4 | D5 | H1 | H2 | H3 | H4 |
LyPD1300 ---- | 1300 | 100 | 900 | 204 | 245 | 18 | 20 | 1/4 \ " | 1120 | 440 | 260 | 220 |
LyPD2600 ---- | 3100 | 125 | 1040 | 335 | 377 | 18 | 25 | 1/4 " | 1250 | 500 | 290 | 227 |
150 | 1190 | 335 | 377 | 18 | 25 | 1/4 " | 1300 | 525 | 330 | 260 | ||
LYPD3900 ---- | 3900 | 150 | 1190 | 335 | 377 | 18 | 25 | 1/4 " | 1300 | 525 | 330 | 260 |
200 | 1220 | 335 | 377 | 18 | 25 | 1/4 " | 1300 | 545 | 380 | 300 | ||
Lyld5200 ---- | 500 | 200 | 1300 | 420 | 457 | 18 | 25 | 1/4 " | 1350 | 550 | 380 | 300 |
LYPD6500 ---- | 6500 | 200 | 1350 | 471 | 508 | 18 | 25 | 1/4 " | 1350 | 550 | 380 | 300 |
250 | 1430 | 471 | 508 | 18 | 25 | 1/4 " | 1500 | 600 | 450 | 325 | ||
LyPD7800 ---- | 7800 | 200 | 1350 | 471 | 508 | 18 | 25 | 1/4 " | 1350 | 550 | 380 | 300 |
250 | 1430 | 471 | 508 | 18 | 25 | 1/4 \ " | 1500 | 600 | 450 | 325 | ||
Lyld5200 ---- | 9100 | 250 | 1480 | 524 | 560 | 18 | 25 | 1/4 " | 1500 | 600 | 450 | 325 |
Qhov dav | D1 | D2 | d3 | d4 | n |
DN100 | Â 100 | Â 220 | 15 | 15 | 8 |
DN125 | Â 125 | 250 | 210 | 15 | 8 |
DN150 | Â 150 | 285 | 240 | 5 | 8 |
Dn200 | Â 200 | Â 340 | Â 295 | 5 | 12 |
DN250 | 250 | Â 405 | Â 355 | 5 | 12 |
